Catalyst Driving Performance Optimizer - by Garmin
The Garmin Catalyst attaches inside the cockpit to collect data and deliver real-time auditory instruction via Bluetooth technology; instant session analysis identifies key areas for improvement. It is not suitable for usage on public roads.
True Course Location technology employs built-in accelerometers, image processing, and 10 Hz multi-GNSS positioning to automatically establish your car's racing line on the track.
No computer is required to compare your performance data from previous sessions and receive instant, adaptive advice as it automatically analyses your data to provide the biggest areas of gain right on the 7" Catalyst display.
Access a preloaded track database with road courses from all over the world. Review detailed performance information on your device, or use Garmin Connect to see a summary of your data on your phone or computer.
Physical Specs & Performance:
| Display Size | 6.0" W x 3.5" H (15.2 x 8.9 cm); 6.95" (17.7 cm) |
| Battery type | rechargeable lithium-ion |
| Display resolution | 1024 x 600 pixels |
| GPS | Yes |
| Dimension | 7.84" W x 4.79" H x 0.93" D (19.9 x 12.2 x 2.4 cm) |
| Waterproof | No |
| Weight |
15.4 oz (437 g) |
| Display Type | 6.95" super wide view IPS, color TFT, with on-cell capacitive touch panel |
| Battery life |
up to 2 hours |
Maps & Navigation:
| Preloaded street maps | No |
Features:
| Clarity ™ HDR | No |
| Wi-Fi® map and software updates | yes (software and track database updates) |
| Automatically identifies areas of biggest time gain | Yes |
| Supports multiple users | Yes |
| Camera Resolution | 1080p (Remote Cam) |
| Magnetic Mount | Yes |
| Stores history of all on-track performance | Yes |
| Interior and exterior recording | No |
| Garmin Connect™ compatible | yes (access data summaries from your compatible phone or computer) |
| Current weather plus 5 day forecast via Wi-Fi | Yes |
| GLONASS | Yes |
| Preloaded global track database | Yes |
| True Optimal Lap™ with video | Yes |
| Headphone jack/audio line-out | No |
| Requires cellular data connection | No |
| Driving performance scores | Yes |
| Field of View | 140 degrees |
| True Track Positioning™ (your racing line) | Yes |
| Audio line-out/headphone jack | Yes |
| Segment analysis (racing line, speed and acceleration/deceleration) | Yes |
| Powered magnetic mount | Yes |
| Image processing | yes (via Remote Cam) |
| Session comparisons | Yes |
| 3D Terrain | No |
| Dust rating | No |
| Barometric altimeter | No |
| Dual-orientation display | No |
| Built-in accelerometers | Yes |
| Interior night vision | No |
| BLUETOOTH® connectivity | yes_bluetooth_helmet_headset |
| Real-time audio cues/audio coaching | Yes |
| Supports multiple cars | Yes |

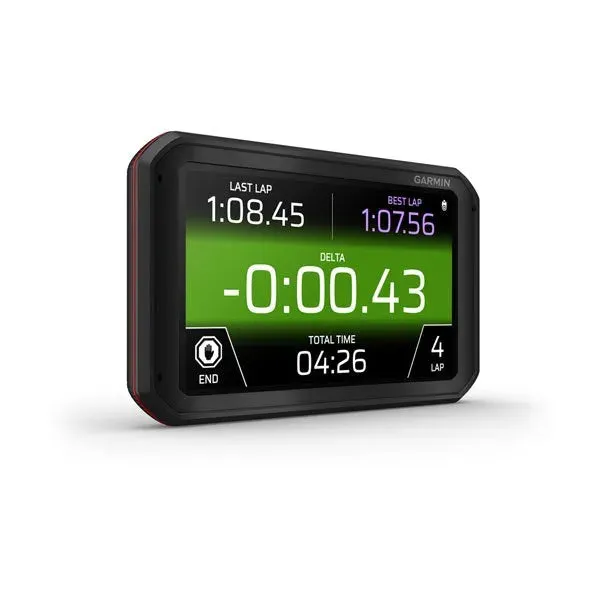

| Displays best lap time, adaptive delta time, number of laps and total session time | Yes |
| 10 Hz multi-GNSS positioning | Yes |
| Frame Rate | up to 30 FPS |
| 2 microphones; beam-forming technology | No |
| Compass | No |
| Galileo | No |
| Internal storage | 16 GB |
| Works with vehicle stereo | yes |
| 1" ball adapter with AMPS plate | Yes |
| Data cards | yes (1 SD card slot (accessible under bottom cover): 32 GB microSD™ Class 10 card included. Two SD card slots (side of unit): not included, accepts up to 256 GB microSD) |
| Screw-down mount | Yes |
| 3-D buildings and terrain | No |
In the Box:
- Garmin Catalyst™
- 32 GB microSD™ pre-installed under covered compartment (auxiliary card slot on the side of the Catalyst device is externally accessible for memory expansion)

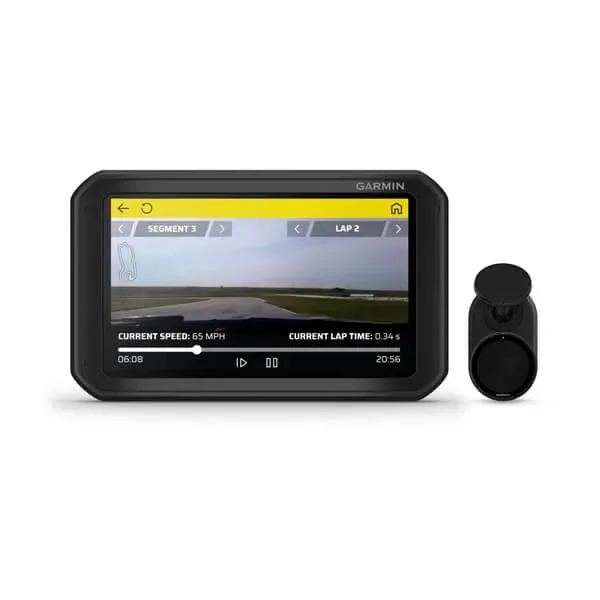

- Remote Cam with polarized lens cover
- Remote Cam 3.5 meter cable
- Heavy-duty vehicle suction cup

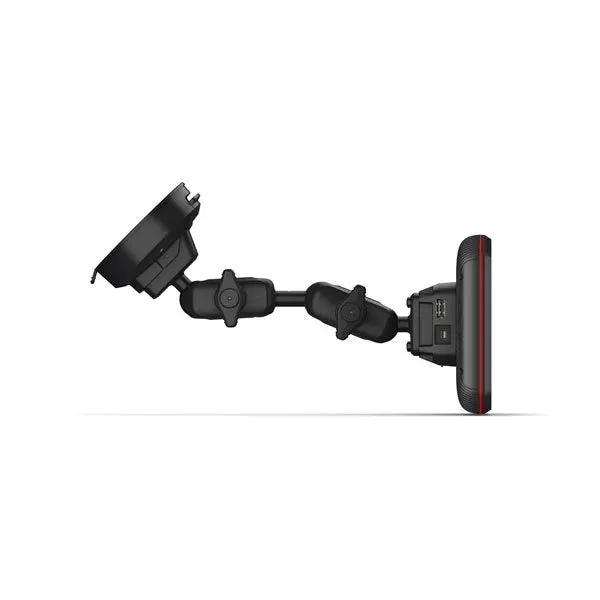

- Powered magnetic mount
- Two 1” connecting arms
- 1” arm connector
- Cable clips
- Socket power cable
- Documentation
Included Optional Accessories:
- 1” ball adapter screw-down mount
- USB data cable
- 12V bare wire vehicle power cable
- Additional Remote Cam adhesive
