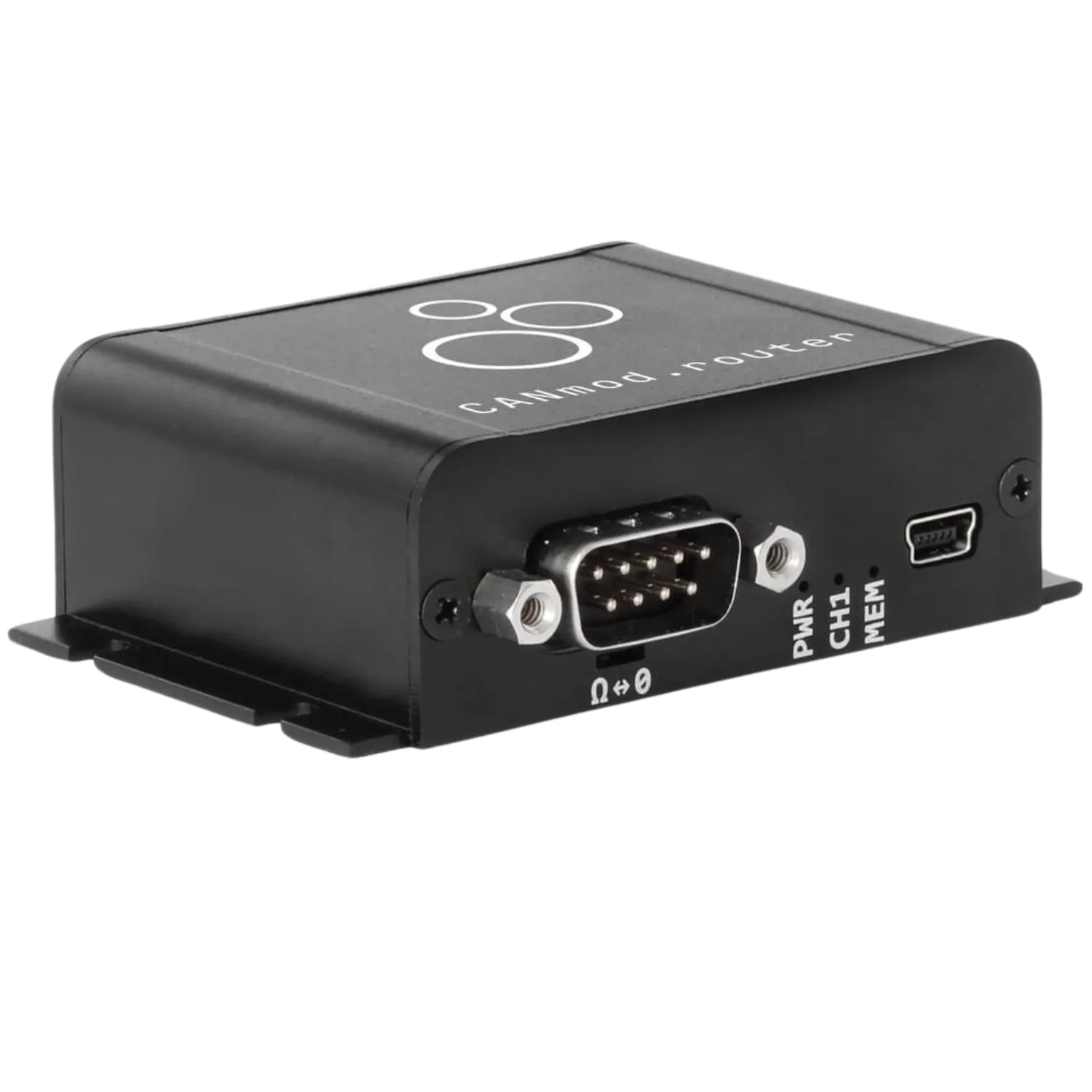

The CANmod.router lets you receive/transmit CAN data (Classical or FD) from/to 4 isolated secondary CAN buses via 1 primary CAN bus (or USB).  This compact module is 100% standalone (no PC required) and offers pro specs, daisy chaining and powerful configuration options.

When used with the , it enables you to log 5 x CAN buses (or beyond via daisy chaining).

It can be used as a powerful 4 x CAN FD to USB interface with free software/API tools.

View

Example: Transport muxed CAN data through tunnels

In mux-mode, traffic from/to the secondary CAN buses is routed through the primary CAN bus via tunnels (CAN frames that transport the original data). Muxed data received by a user CAN node (e.g. CANedge) can be easily demuxed to its original form via software/API tools.

Example: Interface 4 CAN buses with just 1 CAN bus (or USB)

Receive/transmit data from/to 4 x CAN buses via 1 x CAN bus (or USB) - e.g. for use by CAN loggers, ECUs or via USB streaming.

• 4 x CAN (incl. CAN FD) with basic galvanic isolation
• Power via DB9 (5-26 V and ) or USB (5V)
• Independently configure each secondary CAN interface
• Optional silent mode and independently customizable bit-rates
• Advanced message filters and prescalers
• Configure transmit lists - and/or control via primary CAN
• Support for CAN error frame logging
• Quickly connect 4 x CAN via adapter cable
• Daisy chain multiple modules for 8, 12, 16, ... CAN channels

Example: CANedge CANmod.router = 5 x CAN bus data logger

The CANedge supports 2 x CAN. By adding a CANmod.router, you can now log 1 x CAN (CH1) 4 x CAN (CH2) - or beyond.

• Power the CANmod.router via the CANedge 2nd port 5V
• Maximize 4 x CAN throughput via CAN FD routing (mux-mode)
• Easily demux routed data via MF4 converter or Python API
• Control transmission on the 4 x CAN via CANedge
• Use daisy chaining to log 1 8 x CAN, 1 12 x CAN (or beyond)

Example: Stream 4 x CAN FD via USB in SavvyCAN/Python

You can also interface the 4 x CAN buses via USB - making the CANmod.router the best value/cost CAN interface on the market.

• Receive/transmit data from 4 x CAN FD via USB
• Stream 6,000 frames/second without frame loss
• Power the CANmod.router via USB for easy installation
• Stream raw / DBC decoded data in free SavvyCAN GUI
• Develop any integration via free Python API
• Example: Visualize decoded data in Grafana-MQTT dashboards
